森甯格是農業、園藝和工業應用優質灌溉解決方案的領先設計師和制造商。我們的産品旨在盡可能少地使用水和能源，以幫助灌溉者充分利用每一滴水。在全球50多個國家擁有超過50年的經驗。森甯格是灌溉行業最值得信賴的名字之一。
我們的産品在美國制造，确保最高質量标準得到遵守。産品在上架前，在現場和我們的設施中經過反複、嚴格的測試。這些測試程序和對細節的關注意味着我們的客戶可以依賴于他們對我們所有産品的一緻性和質量要求。

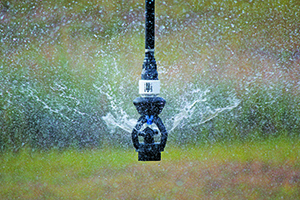

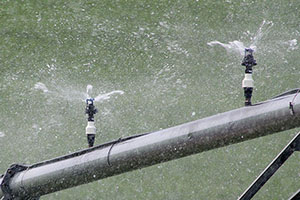

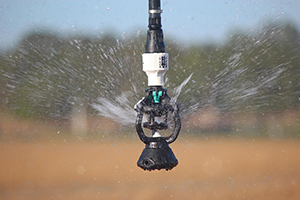

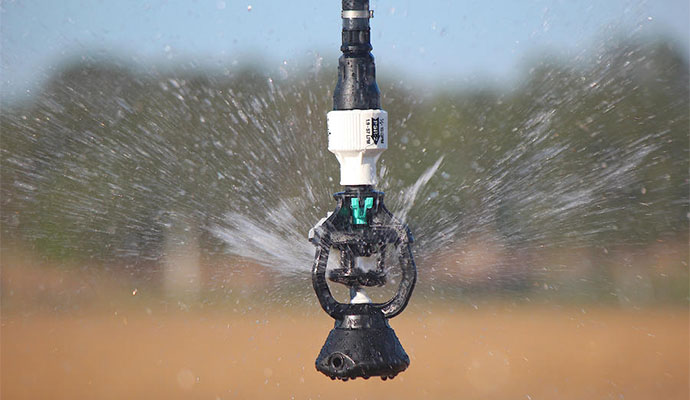

I-WOB®2
Senninger has improved on the i-Wob® UP3® design with the next generation i-Wob2. Featuring a protective shroud that doubles as a nozzle carrier, the new i-Wob2 is capable of better withstanding harsh operating conditions. Senninger Wobblers are recognized across the globe for their ability to spread water in a highly uniform pattern resistant to wind-drift and evaporation.
Flows: 0.80 to 18.35 gpm (182 to 4168 L/hr) based on model
Pressures: 6 to 15 psi (0.41 to 1.03 bar)
i-Wob2 - Black Deflector
Trajectory: Standard-Angle
Surface: 9-Grooves
Droplet Size: Medium Droplets
Ideal for: Silty & Loamy Soils
i-Wob®2 - Blue Deflector
Trajectory: Low-Angle
Surface: 9-Grooves
Droplet Size: Medium Droplets
Ideal for: Silty & Loamy Soils
i-Wob2 - Grey Deflector
Trajectory: Low-Angle
Surface: 6-Grooves
Droplet Size: Small Droplets
Ideal for: Tight, Clay Soils
i-Wob2 - White Deflector
Trajectory: Low-Angle
Surface: 6-Grooves
Droplet Size: Large Droplets
Ideal for: Sandy Soils

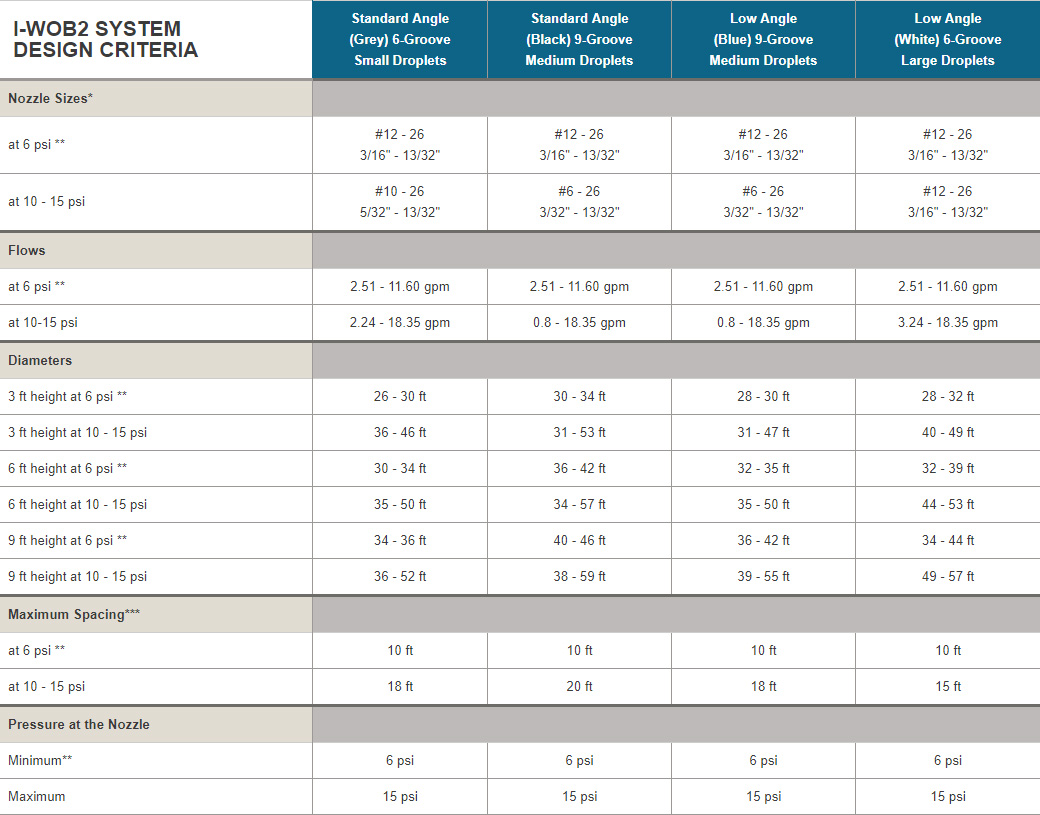

I-WOB2
*It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates.
** Senninger recommends 10 psi for optimum performance; 6 psi can be used for nozzles #12 and larger.
*** For optimum performance, Senninger recommends the use of maximum spacing for 1-2 spans only.
Note: Always mount the i-Wob2 on a minimum of 2 ft reinforced flexible hose. The hose must be on the outlet end of any semi-rigid or rigid drop.
Keep i-Wobs above crop canopy when outlet spacing exceeds 10 ft This is especially important on high profile crops.
I-WOB2 (METRIC)
*It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates.
** Senninger recommends 0.69 bar for optimum performance; 0.41 bar can be used for nozzles #12 and larger.
*** For optimum performance, Senninger recommends the use of maximum spacing for 1-2 spans only.
Note: Always mount the i-Wob2 on a minimum of 0.6 m reinforced flexible hose.The hose must be on the outlet end of any semi-rigid or rigid drop.
Keep i-Wobs above crop canopy when outlet spacing exceeds 3.0 m. This is especially important on high profile crops.

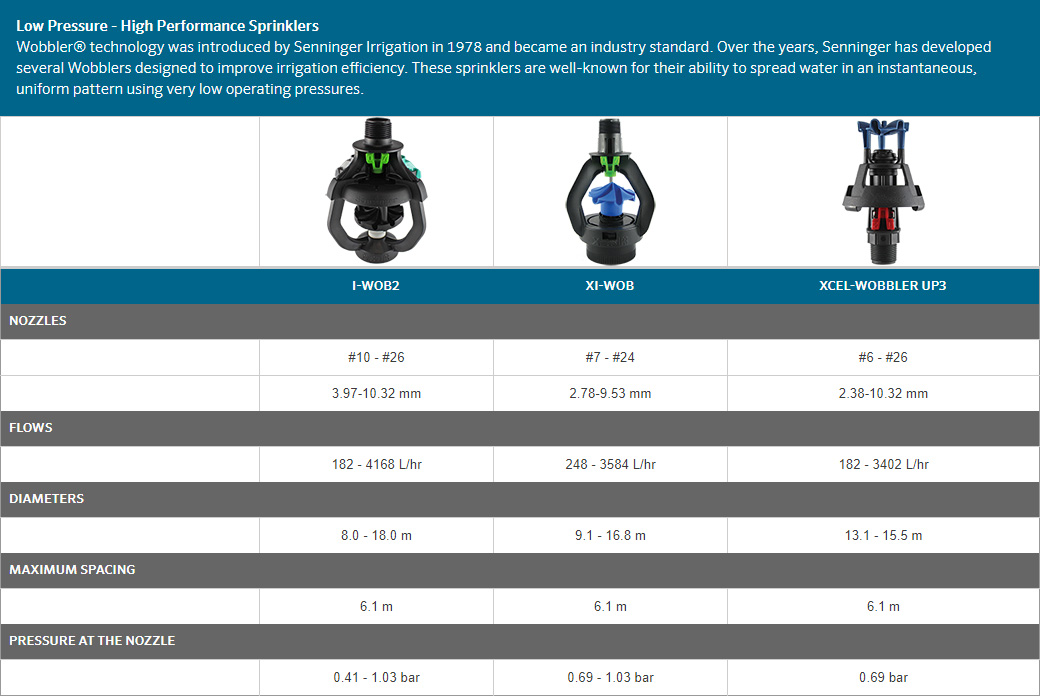

PIVOT WOBBLER COMPARISON
PIVOT WOBBLER COMPARISON (METRIC)
Magnum Weight
Senninger weights provide stability on drops for a number of pivot applicators. The weight’s easy-to-install design lets it remain on the applicator during nozzle changes.
Always be sure the weight is tightly threaded into the bottom of the i-Wob2 (140-inch-lbs torque recommended)
Pressure Regulators
Senninger pressure regulators control excessive and varying inlet pressures to a constant outlet pressure. They allow a system to maintain an accurate flow output at each sprinkler head to ensure proper distribution uniformity.
Recognizing the importance of maintaining correct system pressure and uniform distribution, Senninger offers various models to meet specific flow and installation requirements.

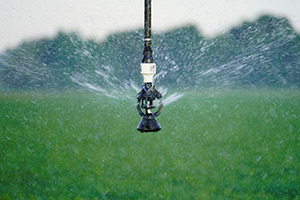

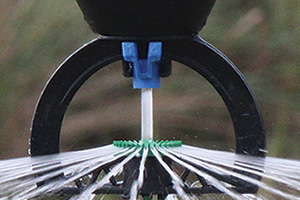

XI-WOB®
Ideal for installation on semi-rigid PE drops, steel drops, and flexible hose drops when used with the Magnum Weight.
Flows: 1.09 to 15.78 gpm (248 to 3584 L/hr) based on model
Pressures: 10 to 15 psi (0.69 to 1.03 bar)
Model 610 (Blue)
Surface: 6-Grooves
Droplet Size: Medium Droplets
Model 615 (Black)
Trajectory: 15°
Surface: 6-Grooves
Droplet Size: Large Droplets
Model 910 (Grey)
Surface: 9-Grooves
Droplet Size: Small Droplets
XI-WOB
*It is recommended that larger nozzle sizes be used only on soils that are suited for higher application rates.
** For optimum performance, Senninger recommends the use of maximum spacing for 1-2 spans only.
Note: When outlet spacing exceeds 10 ft, keep Xi-Wobs above crop canopy. This is especially important on high profile crops. Not warranted for rigid installation on offsets or booms larger than 10.5 ft. Longer offsets and booms require a minimum of 2 ft reinforced flex hose.

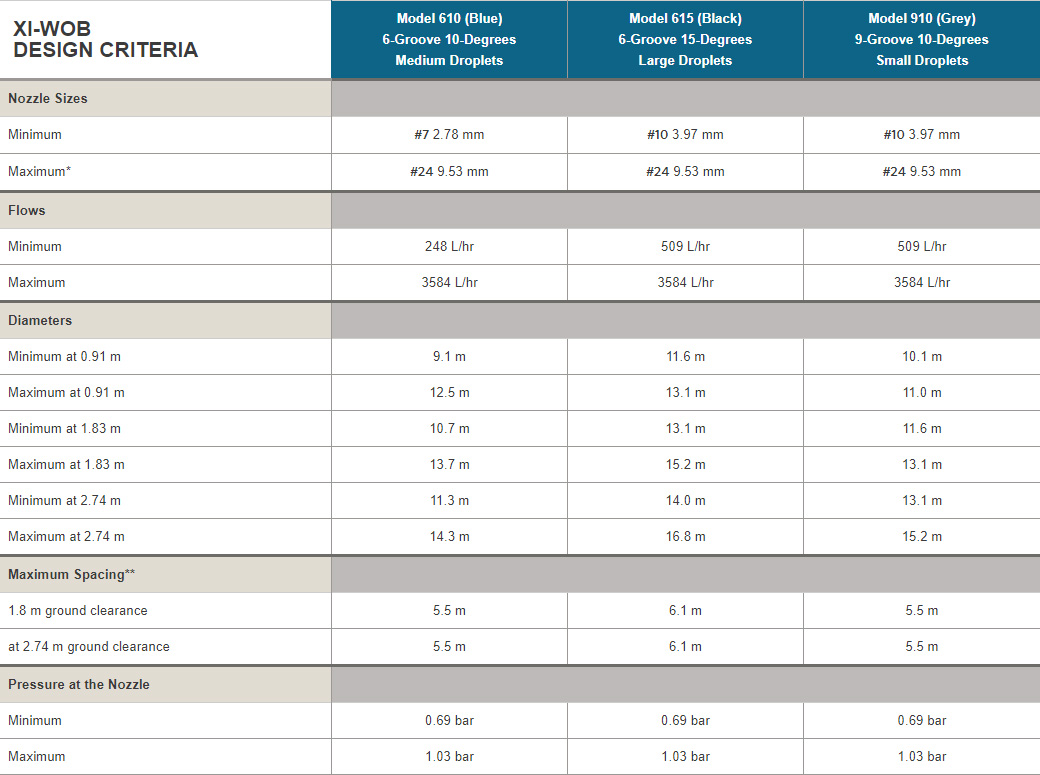

XI-WOB (METRIC)
*It is recommended that larger nozzle sizes be used only on soils that are suited for higher application rates.
** For optimum performance, Senninger recommends the use of maximum spacing for 1-2 spans only.
Note: When outlet spacing exceeds 3.0 m, keep Xi-Wobs above crop canopy. This is especially important on high profile crops. Not warranted for rigid installation on offsets or booms larger than 3.2 m. Longer offsets and booms require a minimum of 0.61 m reinforced flex hose.
PIVOT WOBBLER COMPARISON
PIVOT WOBBLER COMPARISON (METRIC)
Magnum Weight
Senninger weights provide stability on drops for a number of pivot applicators. The weight’s easyto-install design lets it remain on the applicator during nozzle changes.

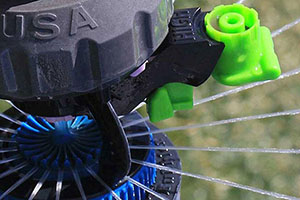

UP3 Dual Nozzle Carrier
To access the secondary nozzle, pinch and pull the nozzle from the applicator, flip the carrier over and click in the secondary nozzle. The carrier is marked to indicate high and low flow nozzles.
Pressure Regulators
Senninger pressure regulators control excessive and varying inlet pressures to a constant outlet pressure. They allow a system to maintain an accurate flow output at each sprinkler head to ensure proper distribution uniformity.
Recognizing the importance of maintaining correct system pressure and uniform distribution, Senninger offers various models to meet specific flow and installation requirements.

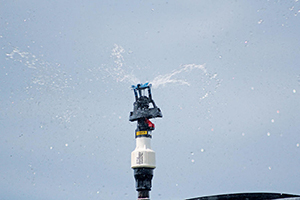

XCEL-WOBBLER® UP3 TOP
With the release of the Xcel-Wobbler® UP3 TOP featuring the convenient UP3 nozzle, Senninger is expanding its patented Wobbler technology. This innovative top-of-pipe product is designed specifically for low pressure to promote energy savings and produce a wind-resistant large droplet.
Flows: 0.80 to 14.98 gpm (182 to 3402 L/hr)
Pressures: 10 psi (0.69 bar)
Xcel-Wobbler UP3 TOP
Surface: 6-Grooves
Droplet Size: Large Droplets

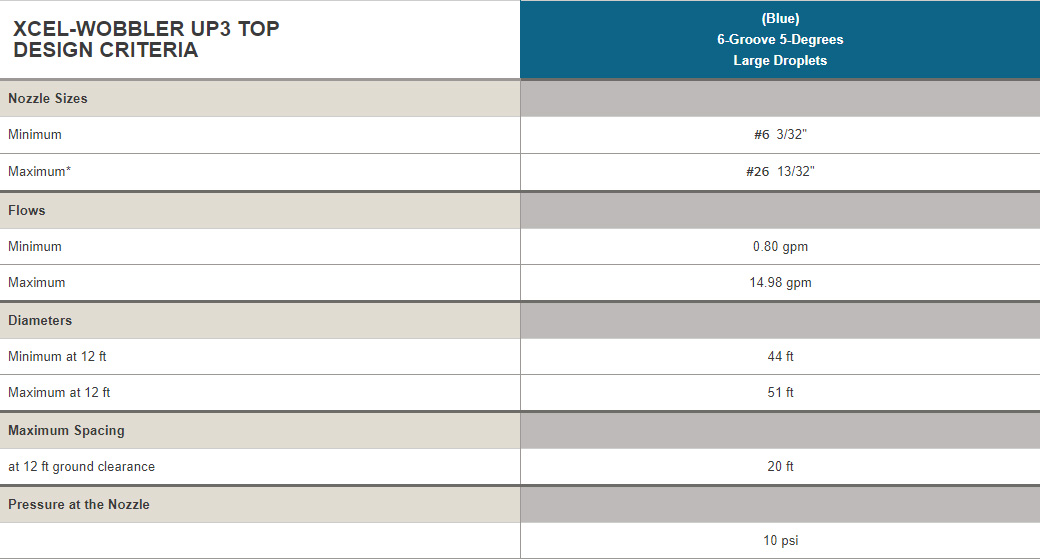

XCEL-WOBBLER UP3 TOP
*It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates.
XCEL-WOBBLER UP3 TOP (METRIC)
*It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates.
PIVOT WOBBLER COMPARISON
PIVOT WOBBLER COMPARISON (METRIC)
Pressure Regulators
Senninger pressure regulators control excessive and varying inlet pressures to a constant outlet pressure. They allow a system to maintain an accurate flow output at each sprinkler head to ensure proper distribution uniformity.
Recognizing the importance of maintaining correct system pressure and uniform distribution, Senninger offers various models to meet specific flow and installation requirements.

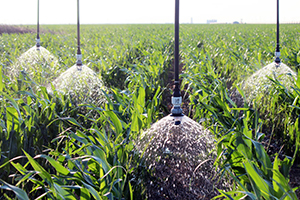

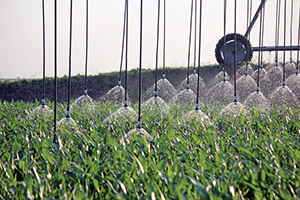

LEPA Close Spacing
LEPA (Low Energy Precision Application) bubblers use less energy than conventional low-pressure sprinklers and can operate using fewer gallons per minute. There are two types of bubble heads available: one deposits water straight down into furrows and distributes water in a narrow stream that avoids wetting the foliage; the other deflects water down in a wide, dome-shaped pattern that gently distributes water without spraying. With LEPA heads, at least 20 percent more water reaches the soil than with conventional spray nozzles.
Flows: 0.27 to 18.35 gpm (61 to 4168 L/hr) Pressures: 6 to 15 psi (0.41 to 1.03 bar)
Shroud w/ Bubbler (beige)
Shroud w/ CM1 (red)

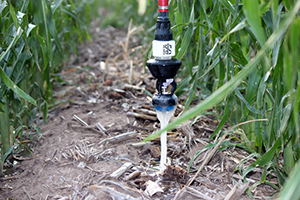

UP3 Bubbler Assembly

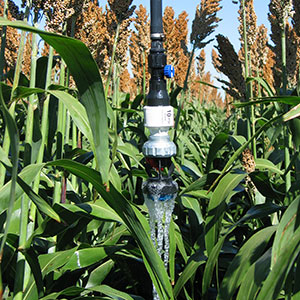

LOW ENERGY PRECISION APPLICATION
LEPA (Low Energy Precision Application) systems gently deliver water just 8 to 18 inches above the ground to combat wind-drift and prevent evaporation loss. Researchers and growers have found that with LEPA at least 20 percent more water reaches the soil compared to conventional spray nozzles.
LDN LEPA bubblers operate at low pressures ranging from 6 to 20 psi. They use less energy than conventional low-pressure sprinklers, and operate using fewer gallons per minute than conventional spray nozzles - approximately 0.27 to 21.18 gpm.
Magnum Weight
Senninger weights provide stability on drops for a number of pivot applicators. The weight’s easyto-install design lets it remain on the applicator during nozzle changes.
Pressure Regulators
Senninger pressure regulators control excessive and varying inlet pressures to a constant outlet pressure. They allow a system to maintain an accurate flow output at each sprinkler head to ensure proper distribution uniformity.
Recognizing the importance of maintaining correct system pressure and uniform distribution, Senninger offers various models to meet specific flow and installation requirements.
噴灌機配件

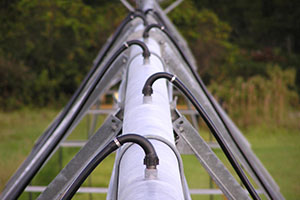

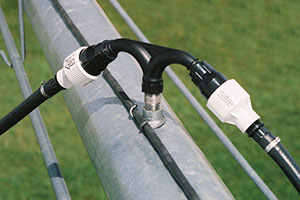

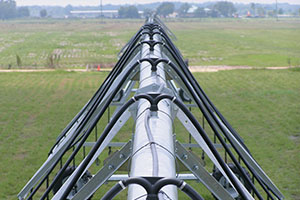

Goosenecks & Truss Rod Hose Slings
Goosenecks & Truss Rod Hose Slings
Goosenecks & Truss Rod Hose Slings

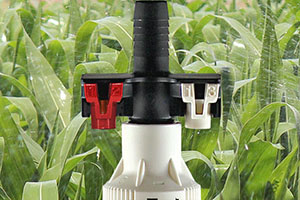

UP3 Dual Nozzle Fitting
UP3 DUAL NOZZLE CARRIER

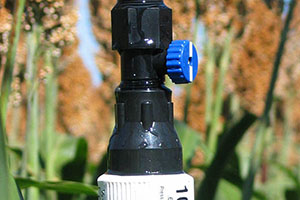

BALL VALVE

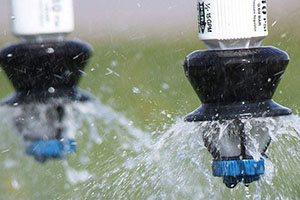

WEIGHTS

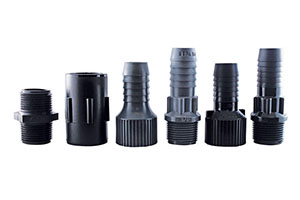

ADAPTERS & FITTINGS
